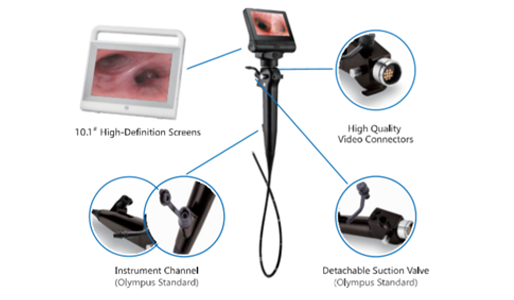

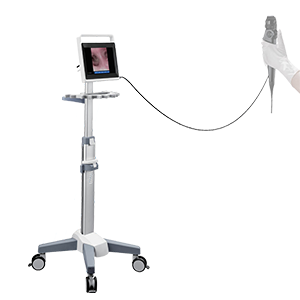

Bronchoscopes

Total solution

High Configuration

Multiple Size

Multiple Disinfection Methods

Disinfection Method YES/ NO
ETO Gas NO
Cidex OPA. Glutaraldehydpe Yes
Autoclave No
High Temperature Plasma No

U41 Specification

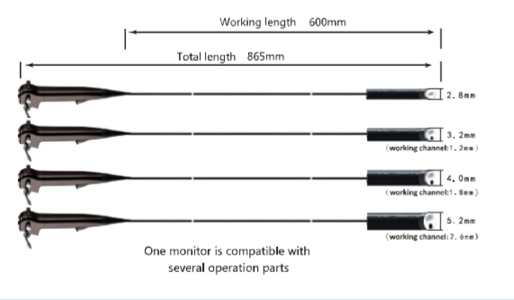

Flexiblescope A30—2.8 B41 —3.2 B41 —4. o B41 —5.2
Insertion Tube Insertion Tube Outer Diameter
Ø2.8mm Ø3.2mm Ø4.0mm Ø5.2mm
Channellnner Diameter Ø1.2mm Ø1.8mm Ø2.6mm
Suggested ETT Tube Size Range Ø3.5-6.5mm Ø4-5mm Ø5-9.5mm Ø6-9.5mm
Bending Section Angulation Range Ui80°/D130°
Insertion Section Working Length 6oomm
Insertion Tube Materials TPU and Electrical Cables
Optical System Field of View
Direction of View
Depth of Field
90°
Forward viewing
3-50mm
Display Part Imaging Resolution
Display resolution
Depth of Field
Shoot Image/Video
Visual angle of display
Storage
Video Output
B/W Balance
Power
400*400
1280 (RGB) x800
10.1 "TFT LCD Touch Screen
True Color
Up/Down160° Left/Right160°
8G
AV
Manual
3.7V lithium battery,rechargeabIe
800*800
800 (RGB) x480
4.3 "TFT LCD Touch Screen
True Color
/
Up/Down160°
32G
Micro HDMI
Manual/Auto
100-240V 50/60Hz
Light LED lipht Brightness adjustabIe,5 levels
Application injection
Suction
BW/BAL
