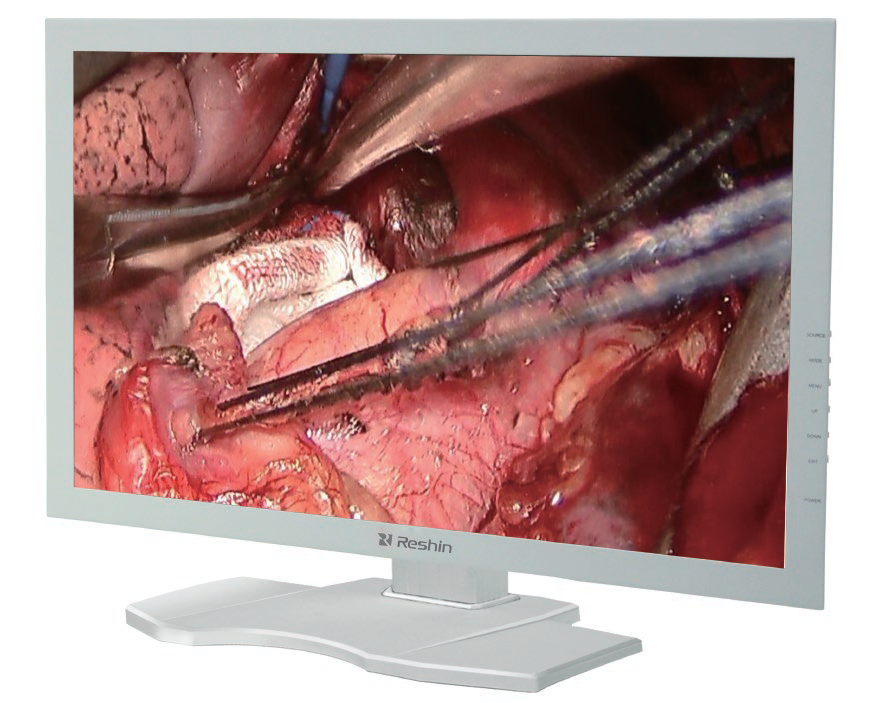

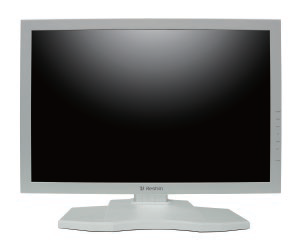

Model: MS247SA 24”
The 24-inch surgical medical display features a 1920x1200 full HD resolution, satisfying the high-end display requirements of endoscopes and HD surgical field cameras. Its white dust-free design and metal enclosure effectively prevent dust and liquid contamination during surgery. Equipped with a professional video processing chip, it offers various gamma curves and interface modes, truly meeting the diverse needs of endoscopic clinical diagnosis and surgical treatment.
- True color reproduction
- Long Lasting Continuous
- Working Steadily
- Comply with International
- Medical Standard
| Display Size | 24" |
|---|---|
|
Colour |
16.7m |
|
Resolution |
1920 x 1200 |
|
Display Ratio |
16:10 |
|
Brightness |
300 cd/m2 |
|
Contrast Ratio |
1000:1 (TYP) |
|
Viewing Angle |
178o/178o |
|
Response Time |
14 ms (TYP) |
|

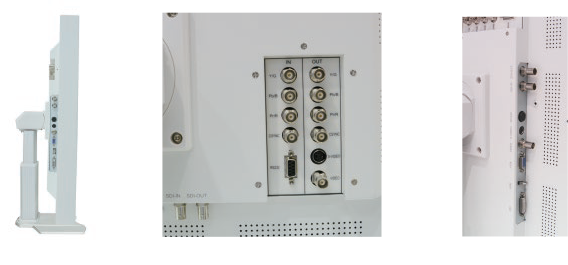

Input Ports |
VGA/ DVI/ S-VIDEO/ BNC(VIDEO)/ BNC*3(RGB/ YPbPr)/ BNC(CSYNC)/ BNC(SDI) |
|
Output Ports |
BNC(VIDEO)/ S-VIDEO/ BNC(CSYNC)/ BNC*3(RGB/ YPbPr)/ BNC(SDI) |
|
Power Supply |
DC 24V |
|
Power Consumption |
≤ 48W max |
|
MTBF |
＞30,000h |
|
Structural Appearance |
White Metal Shell , High Strength, Fast Heat Dissipation，Anti-interference |
|
Dimension |
White Metal Shell , High Strength, Fast Heat Dissipation，Anti-interference |
|
Weight |
7.3±0.5 kg (Without Stand) |
|
Installation Standard |
VESA 100x100mm |
|
Application |
Digital Video-endoscope System / ENT |
|
Certifications |
CE |
