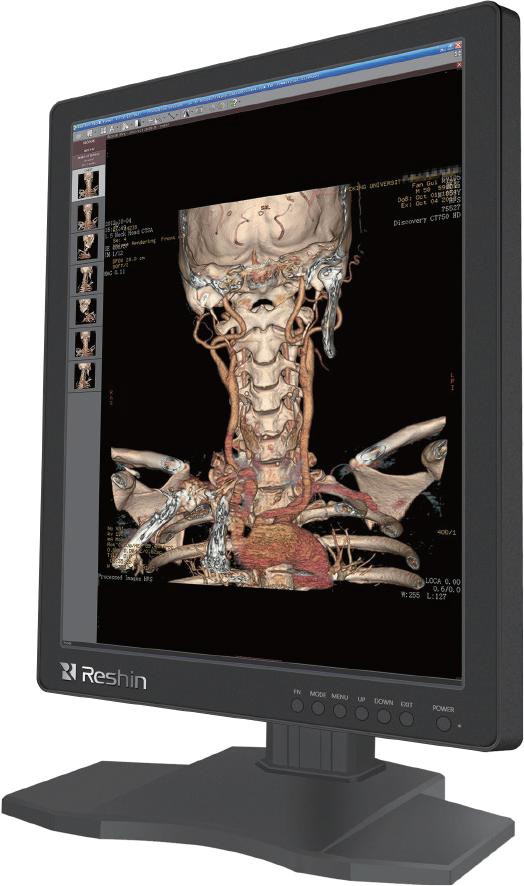

MEDICAL DIAGNOSTIC DISPLAY PROGRAM

MD22CA 21.3"

HIGH-PRECISION DUAL-IMAGING COLOR DISPLAY

The MD22CA is a 21.3-inch 2MP color diagnostic display solution that offers both color and gray- scale imaging capabilities. It allows for convenient viewing of grayscale images displayed in the gray scale corresponding to the DICOM Part 14 curve, as well as color images displayed in the color scale corresponding to the Gamma curve, all on the same monitor. This feature enables the presentation of more realistic medical images and meets the needs of different departments of doctors. The product can be used for various image displays, such as for DR/CT/MRI, as well as 3D post-processing/diagnostic image reading and other applications.

Specifications

Display Size
21.3"
Colour
16bit LUT
Resolution
1200 x 1600
Display Ratio
3:4
Brightness
1000cd/m²
Contrast Ratio
1800:1 (TYP)

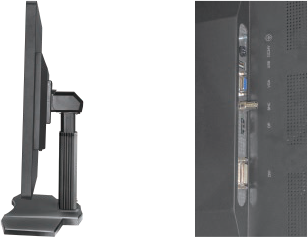

Signal Ports
DP/ DVI-D/ VGA/ BNC(SOG)
Power Supply
DC 24V
Power Consumption
≤50W max
MTBF
>50,000h
Structural Appearance
Black Metal Shell, High Strength, Fast Heat Dissipation, Anti-interference
Dimension
378*500*56 mm (W*H*D) (Without Stand)
Weight
5.4±0.5kg (Without Stand)
Installation Standard
VESA 100x100mm
Application
CT/ MRI/ DR/ PACS Diagnosis Workstation
Certifications
CE
