MEDICAL DIAGNOSTIC DISPLAY PROGRAM
MD32C 21.3"
HIGH-PRECISION DUAL-IMAGING COLOR DISPLAY
MD32C 21.3"
HIGH-PRECISION DUAL-IMAGING COLOR DISPLAY

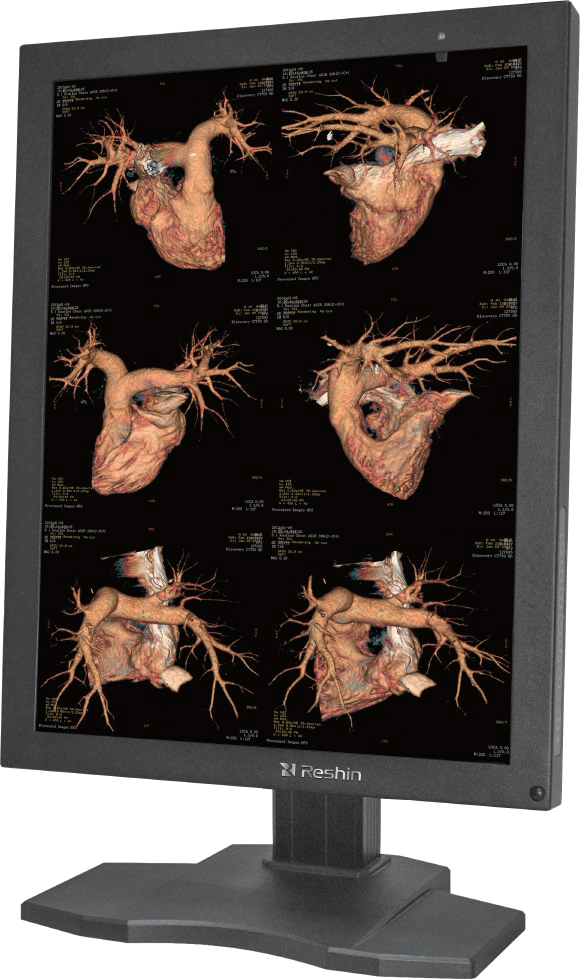

The MD32C is a 21.3-inch 3MP color diagnostic display solution that offers both color and grayscale imaging capabilities.It allows for convenient viewing of grayscale images displayed in the gray scale corresponding to the DICOM Part 14 curve, as well as color images displayed in the color scale corresponding to the Gamma curve, all on the same monitor. This feature enables the presentation of more realistic medical images and meets the needs of different departments of doctors. The product can be used for various image displays, such as for DR/CT/MRI, aswell as 3D post-processing/diagnostic image reading and other applications.
|
Display Size
|
21.3" |
|
Colour
|
16bit LUT |
|
Resolution
|
1200 x 1600 |
|
Display Ratio
|
3:4 |
|
Brightness
|
1000cd/m² |
|
Contrast Ratio
|
1800:1 (TYP) |
|
Signal Ports
|
DP/ DVI-D/ VGA/ BNC(SOG) |
|
Power Supply
|
DC 24V |
|
Power Consumption
|
≤50W max |
|
MTBF
|
＞50,000h |
|
Brightness StabilizationBF
|
Brightness Stabilization System |
|
Structural Appearance
|
Black Metal Shell, High Strength, Fast Heat Dissipation, Anti-interference |
|
Dimension
|
365*481*58 mm（W*H*D） (Without Stand) |
|
Weight
|
6.5±0.5kg (Without Stand) |
|
Installation Standard
|
VESA 100x100mm |
|
Application
|
CT/ MRI/ DR/ PACS Diagnosis Workstation |
|
Certifications
|
CE |
