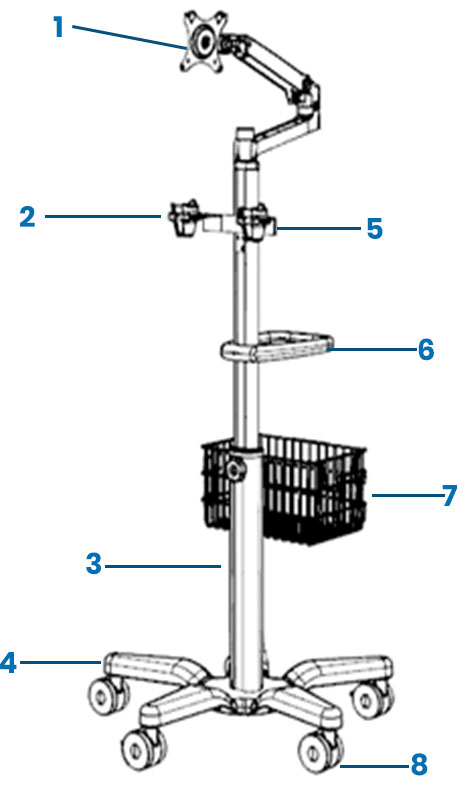

No |
Component |
Technical Specifications |
|---|---|---|
| 1 | Arm | Aluminum alloy, silver color, load capacity of 3-6 kg, lift range 285 mm |
| 2 | Probe Cup | TPE with hardness of 80, inner diameter of 34 mm, dark gray color |
| 3 | Column | Extruded aluminum, large size: 76x56x500 mm, small size: 56x36x745 mm, anodized in bright silver, with manual height adjustment |
| 4 | Chassis | Diameter 635 mm, cast aluminum, white color |
| 5 | Probe Cup Support | Sheet metal, SPCC, white color, load capacity ≤ 1 kg |
| 6 | Rear Handle | Injection-molded handle, ABS, gray color |
| 7 | Iron Wire Basket | Dimensions: 375x210x173 mm, made of 1008 iron
wire, white color, load capacity ≤ 5 kg |
| 8 | Casters | 3-inch silent wheels, standard parts, 2 dual- brake casters & 3 swivel casters |
