Flexible Digital Bronchoscope
Specifications |
Standard Definition |
High Definition |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
BF20 |
BF25 |
BF30 |
BF42 |
BF45 |
BF52 |
BF58 |
BF62 |
BF52H |
BF58H |
BF62H |
|
| Outer diameter of insertion tube | Φ2.0mm | Φ2.5mm | Φ3.0mm | Φ4.2mm | Φ4.5mm | Φ5.2mm | Φ5.8mm | Φ6.2mm | Φ5.2mm | Φ5.8mm | Φ6.2mm |
| Inner diameter of instrument channel | / | Φ1.2mm | Φ1.2mm | Φ2.0mm | Φ2.2mm | Φ2.6mm | Φ3.0mm | Φ3.2mm | Φ2.2mm | Φ2.9mm | Φ3.2mm |

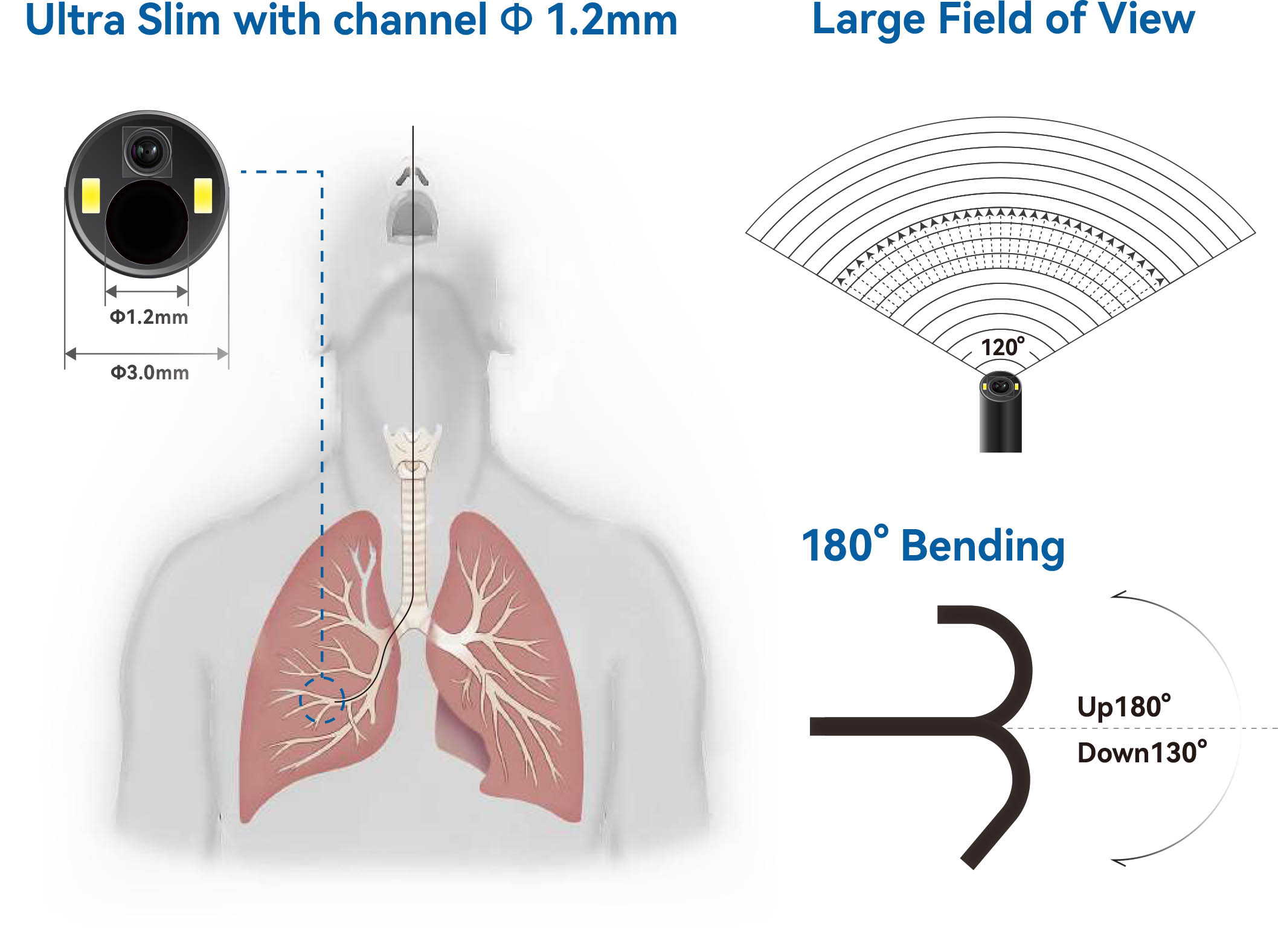

| Field of view | 120° | ||||||||||
| Depth of view field | 3mm-200mm | ||||||||||
| Range of tip Bending | (U)180° (D)130° | ||||||||||
| Working length | 600mm | ||||||||||
| Specification |
VS100 |
|---|---|
| Image resolution | 1280×800 |
| video output | HDMI |
| Data storage | USB Disk, SD card(Built-in8GB) |
| Inner/Video format | JPG/BMP/MP4 |
| Power | DC3.7V Li-ion Battery; 100~240V; 50/60Hz |
