MEDICAL DIAGNOSTIC DISPLAY PROGRAM

MD52G 21.3"

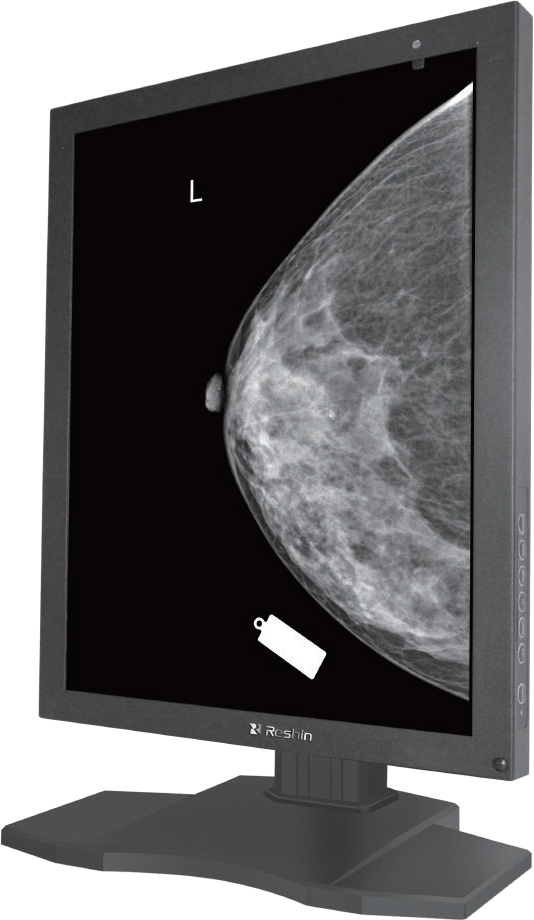

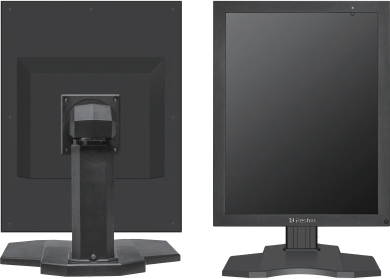

Diagnostic Grayscale Mammography Medical Display MD52G

The MD52G is a 21.3-inch 5MP grayscale mammography display solution that adopts innovative image modulation and demodulation technology. It features a resolution of 2048x2560 andbrightness of up to 3200 cd/m², enabling more accurate grayscale imaging and clear visualization of even the subtlest calcifications on the screen.The product provides excellent image quality and is suitable for radiology diagnosis and mammography diagnosis.

Specifications

Display Size
21.3"
Colour
16bit LUT
Resolution
2048×2560
Display Ratio
4:5
Brightness
3200cd/m2
Contrast Ratio
2500:1 (TYP)

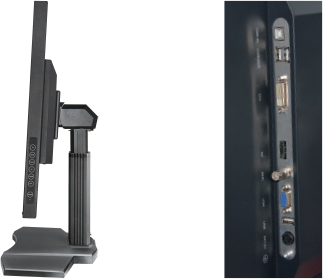

Signal Ports
DP/ DVI-D/ VGA/ BNC(SOG)
Power Supply
DC 24V
Power Consumption
≤80W max
MTBF
>30,000h
Brightness StabilizationBF
Brightness Stabilization System
Structural Appearance
Black Metal Shell, High Strength, Fast Heat Dissipation, Anti-interference
Dimension
378*500*56 mm (W*H*D) (Without Stand)
Weight
6.5±0.5kg (Without Stand)
Installation Standard
VESA 100x100mm
Application
Mammography/ PACS Diagnosis Workstation
Certifications
CE
