Model: MS321PB 31.5"

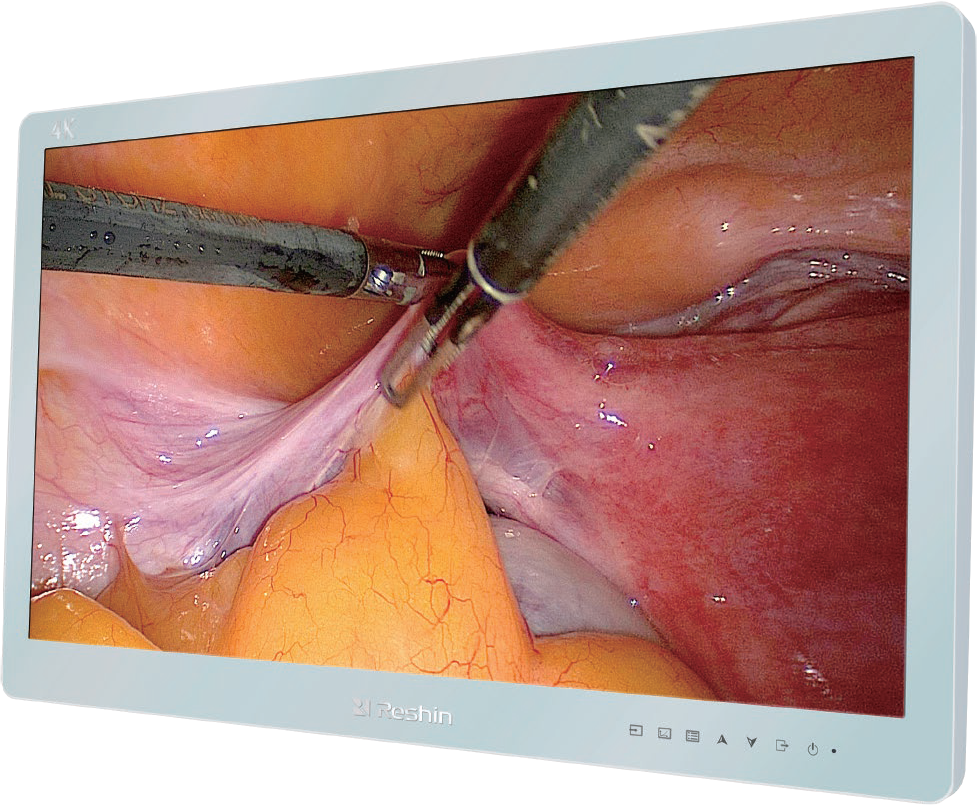

31.5” surgical medical display is equipped with 3840*2160 IPS 4K screen and AR anti-glare protective front glass. Its full-lamination technology can effectively prevents dust and liquid pollution during operation, thus meets the high-level purification requirement in operating room.
Its complete signal interfaces can be applied to a variety of image display. The particular 12G-SDI module supports 2160P60 (real 4K) display; specialized SDI cord allows lossless transmission in extra long distance over 50 meters. With strong anti-interference capability, it is a good fit for surgical operating environment.
- True color reproduction
- Ultra HD 4K Display
- Exquisite and real image
- Full View Displaying Panel
- LED Backlight
- Comply with International
- Medical Standard
Display Size | 31.5" |
---|---|
Colour |
1.07B |
Resolution |
3840×2160 |
Display Ratio |
16:9 |
Brightness |
1000 cd/m2 |
Contrast Ratio |
1300:1 (TYP) |
Viewing Angle |
178o/178o |
Response Time |
14 ms (TYP) |
Input Ports |
HDMI*3 / DP*2 / 3G-SDI*4 / 12G-SDI |
Output Ports |
HDMI |
Power Supply |
DC 24V |
Power Consumption |
≤ 120W max |
MTBF |
>30,000h |
Structural Appearance |
White Metal Shell With Ar Protective Front Glass; Full-lamination Technology |
Dimension |
647*409*63 mm(W*H*D) (Without Stand) |
Weight |
14.27±0.5 kg (Without Stand) |
Installation Standard |
VESA 100x100mm |
Application |
Digital Video-endoscope System / ENT |
Certifications |
CE |
