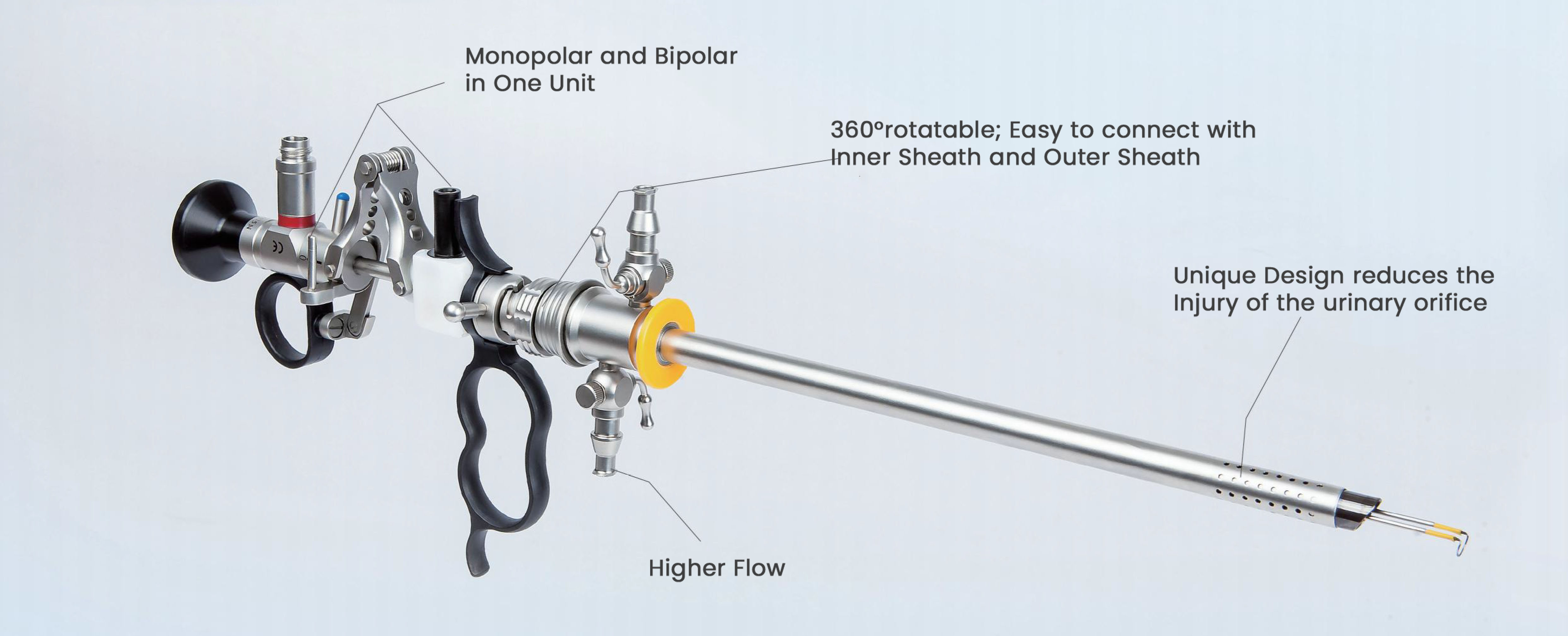

Compared with the traditional design, BOLANG resectoscope not only can reduce the risk of injury, also can provide convenience for doctors.

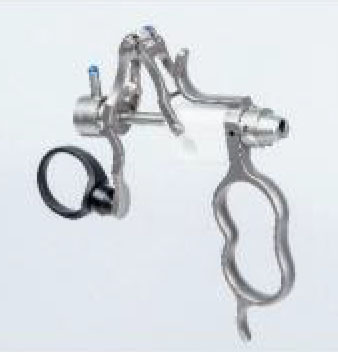

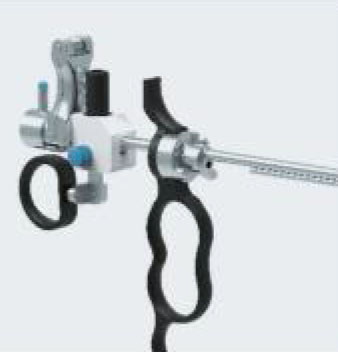

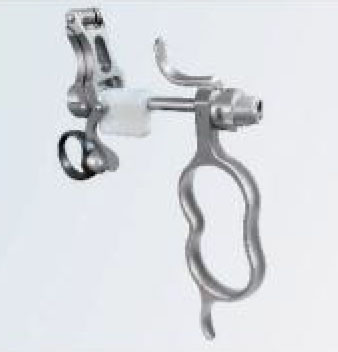

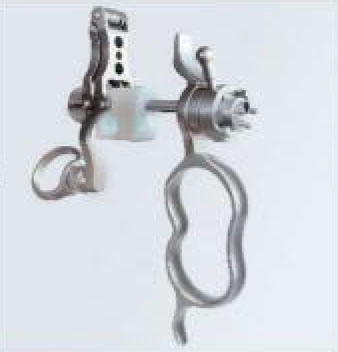

Resectoscope Working Element

PRODUCT
Working Element
Compatible With Storz Type
Gyrus
Plastic Active
Plastic Passive
Three Needls Epassive
Gyrus Active
Gyrus Passive
SPECIFICATION 9.0/8.8 mm
7.5/8.0 mm 		9.0/8.8 mm
7.5/8.0 mm 		9.0/8.8 mm
7.5/8.0 mm 		9.0/8.8 mm
7.5/8.0 mm 		9.0/8.8 mm
7.5/8.0 mm
REFERENCE PICTURE
Item No DQ.111.244
DQ.111.344 		DQ.111.242
DQ.111.342 		DQ.121.000 DQ.121.244
DQ.121.344 		DQ.121.242
DQ.121.342

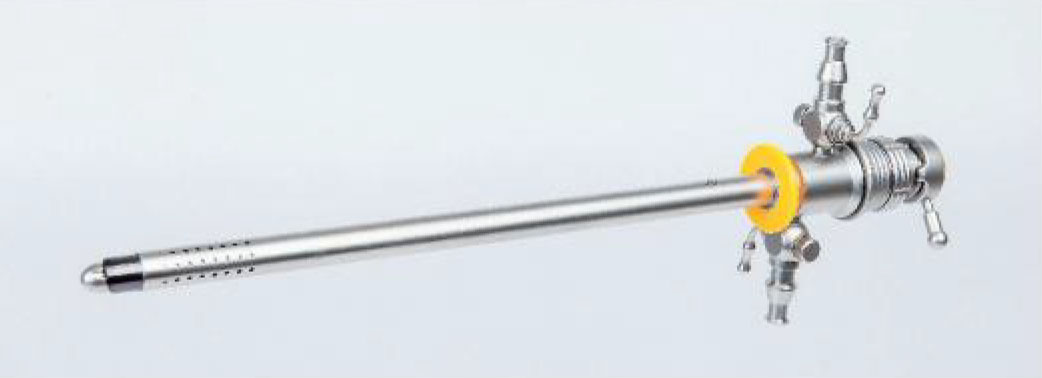

    Continuous-flow operative sheath, inner sheath and standard obturator

21FR

WORKING CHANNEL/FR

Item No
Product
Specification
Reference Picture

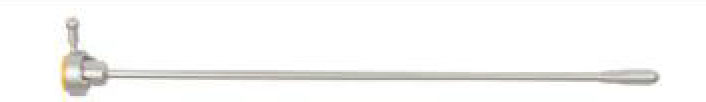

DQ.NQ Inner Sheath 20Fr/21Fr/24Fr/25Fr

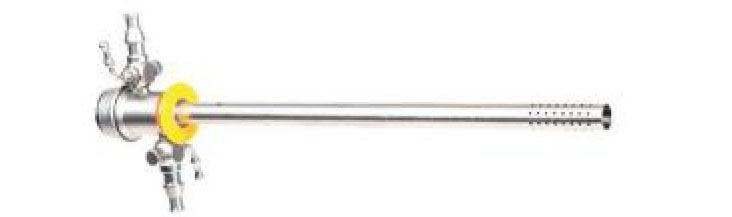

DQ.WQ Outer Sheath 23Fr/24Fr/26Fr/27Fr

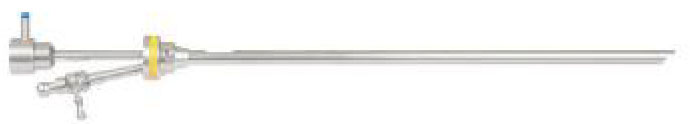

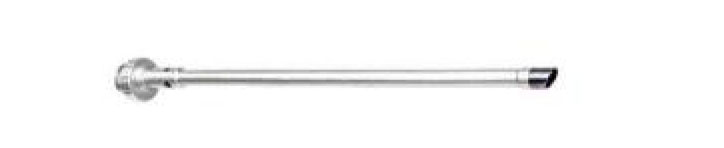

DQ.BKQ.BZ Standard Obturator
DQ.BKQ.DX Deflecting Obturator
DQ.KSBKQ.QX Visible Obturator With Working Channel

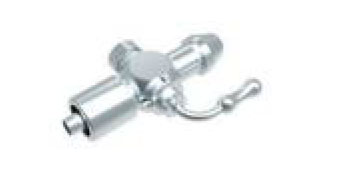

DQ.NQS Rotatable Irrigation Adapter-with luer connector & stopcock When the urethra of patient is small, Inner Sheath Adapter could be:Instead of outer sheath, connect with the inner sheath directly
PJ.JT Water Flow Connector Luer-Lock Connector, with stopcock

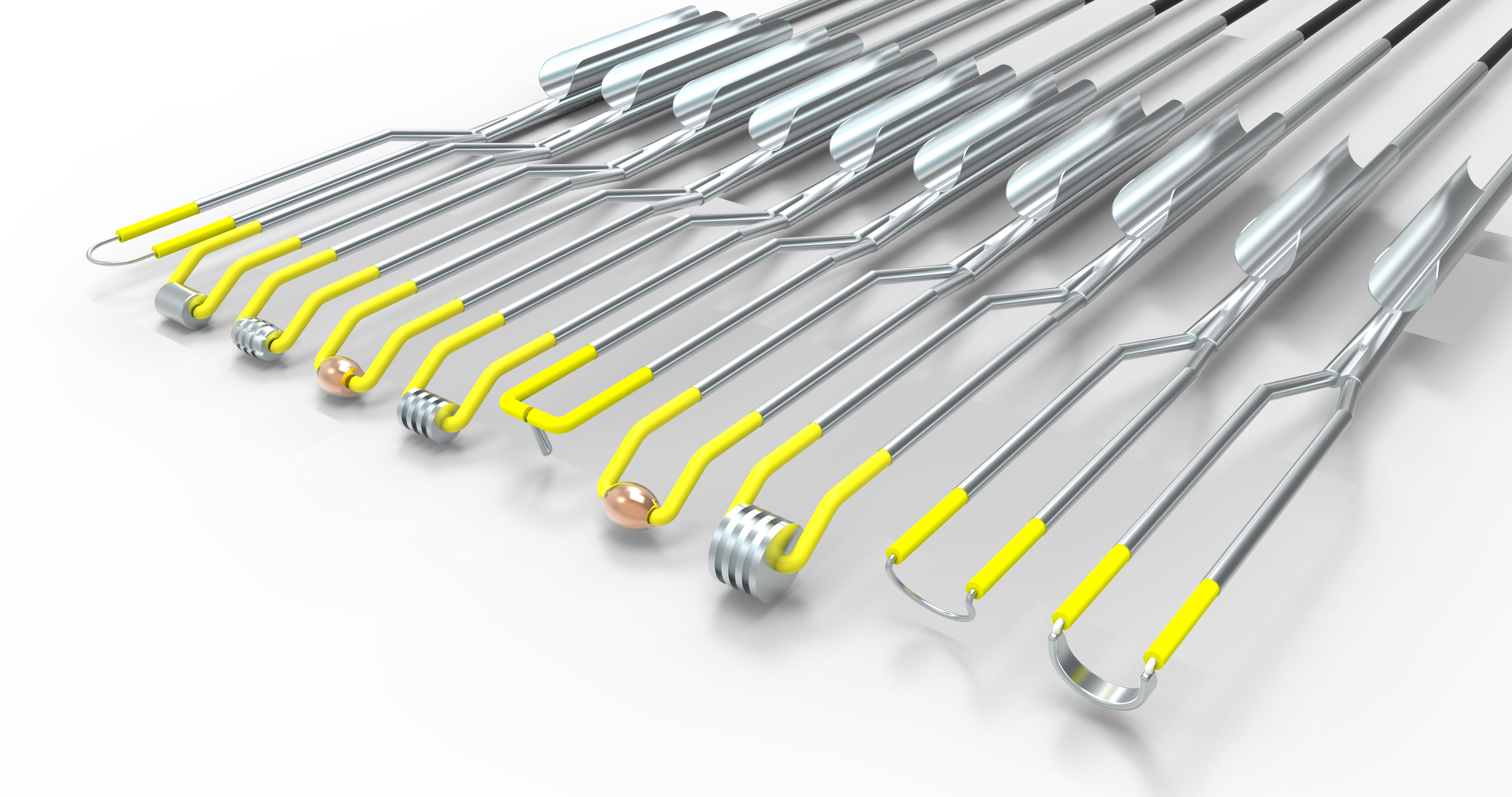

Loop

Item No
Loop
MN.5RF58A Loop Strip electrode
MN.5RF58B Loop electrode
MN.5RF58C Roller electrode
MN.5RF58D Rollerball electrode
MN.5RF58E Knife electrode

Laser Resectoscope

In order to explore the ideal treatment for patients, a new mild and effective standard procedure for prostatectomy has been developed due to the introduction of the latest laser technique. Today, the application of laser resectoscope has become an excellent alternative to traditional high-frequency electrotomy. Through the optical fiber, from the laser generator to the tip of the laser resectoscope, accurate control of the cutting of prostate tissue.

laser resectoscope, can be 360° rotated, continuous perfusion design, with accurate and safe guide fiber probe.The inner sheath can be connected with laser resectoscope working element or high-frequency resectoscope’ s, so that doctors not only operate more conveniently and accurately, but also reduce the risk of operation greatly.

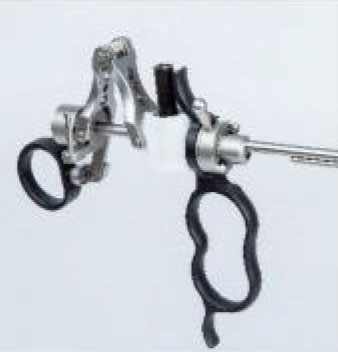

Characteristics of Laser Resectoscope Working Element:

  • Easy to insert fiber
  • Unique fiber optic locking device avoids mechanical damage, bending and breakage of fiber optics effectively.
  • In order to achieve maximum stability of the fiber, this operator can be equipped with fiber adapter tubes in different inner diameters
  • The waterproof device solves the problem of mechanical damage to the optical fiber, which caused by the doctor's misoperation of the valve.
  • Rotatable continuous perfusion design to prevent injury to the urethra effectively
Item No
Product
Outer Tube Size/FR
Diameter
DQ.SJJG Laser Resectoscope
DQ.BKQ.BZ Working Element
DQ.NQ24 Obturator 20Fr/21Fr/24Fr/25Fr
DQ.WQ26 Inner Sheath 23Fr/24Fr/26Fr/27fr
PG.040.030.3020.1 Outer Sheath 4.0mm/30°
DQ.GXG Cystoscope Fiber Adapter 1.0mm/1.2mm/1.4mm/1.6mm/1.8mm
