Model: MS270P 27"

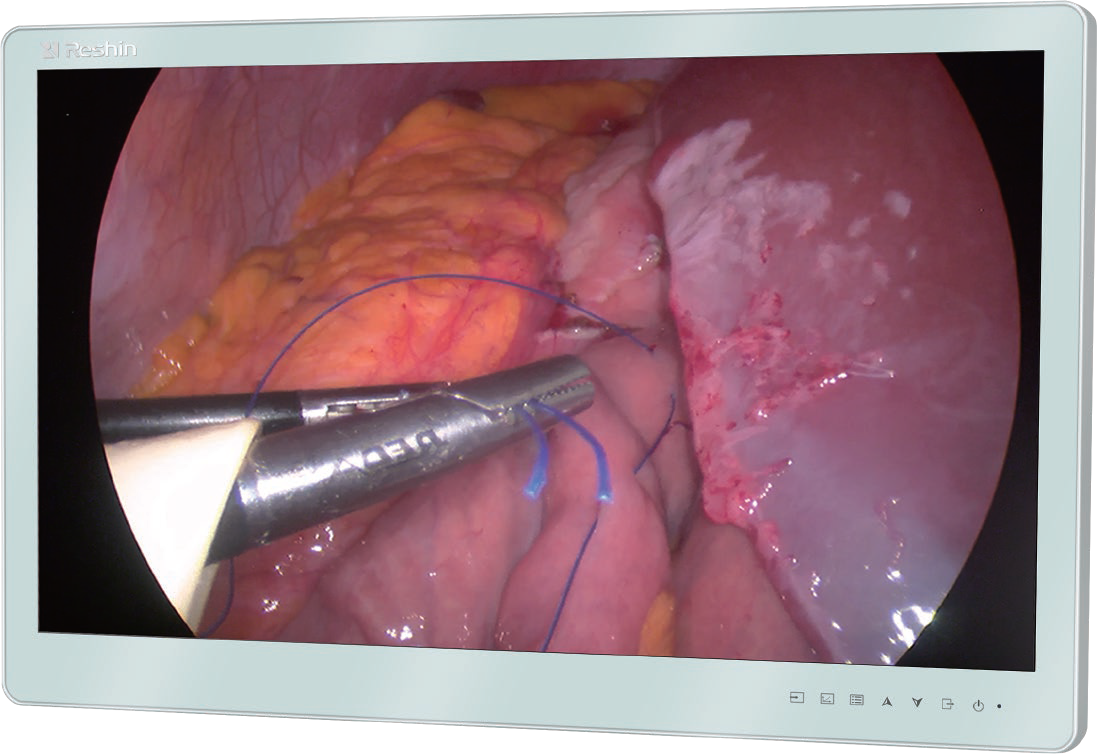

27" surgical medical display is equipped with 1920*1080 IPS HD screen and high transmittance AR anti-glare protective front glass. With complete signal interfaces, it can be applied to a variety of image display. To meet the high-level purification requirement in operating room, it is designed with full-mirror appearance, which can effectively prevents dust and liquid pollution during operation.
Its standard installation structure is fully compatible with operating room construction.
- True color reproduction
- LED Backlight
- Exquisite and real image
- Full View
- Displaying Panel
- Comply with International
- Medical Standard
| Display Size | 27" |
|---|---|
|
Colour |
1.07B |
|
Resolution |
1920 x 1080 |
|
Display Ratio |
16:9 |
|
Brightness |
1000 cd/m2 |
|
Contrast Ratio |
1000:1 (TYP) |
|
Viewing Angle |
178o/178o |
|
Response Time |
14 ms (TYP) |
|

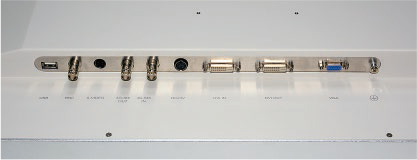

Input Ports |
VGA/ DVI/ S-VIDEO/ VIDEO/ BNC(SDI) |
|
Output Ports |
BNC(VIDEO)/ S-VIDEO/ BNC(CSYNC)/ BNC*3(RGB/ YPbPr)/ BNC(SDI) |
|
Power Supply |
DC 24V |
|
Power Consumption |
≤ 80W max |
|
MTBF |
＞30,000h |
|
Structural Appearance |
White Metal Shell With Protective Front Glass |
|
Dimension |
647*409*63 mm（W*H*D） (Without Stand) |
|
Weight |
8.5±0.5 kg (Without Stand) |
|

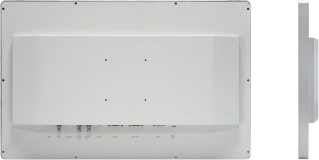

Installation Standard |
VESA 100x100mm |
|
Application |
Digital Video-endoscope System / ENT |
|
Certifications |
CE |
