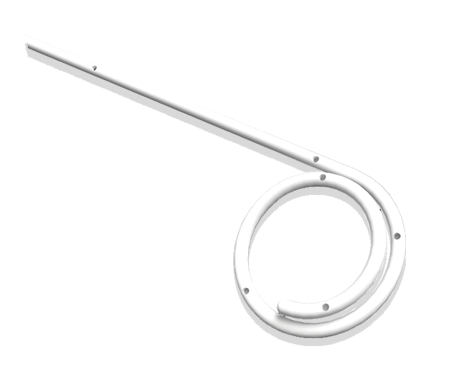

203 Series Disposable Ureteral Stent
Description :
After the RIRS or PCNL procedure, a temporary stent is mostly reserved for several weeks to guide the ureter drainage and stone discharging, to prevent the new stone formation.
- Biocompatible polyurethane (PU) that softens >35% at body temperature, which will promote greater patient tolerability.
- Hydrophilic surface that facilitates navigation of strictures.
- Small holes on the stent walls to facilitate the drainage.
- Graduated circumferential markings every 5cm along the stent body.
- High retention pigtail shape tails reduces potential stent movement.
- Tapered tips that facilitate accessing the ureteral orifice.
- Clear development under fluoroscopy.

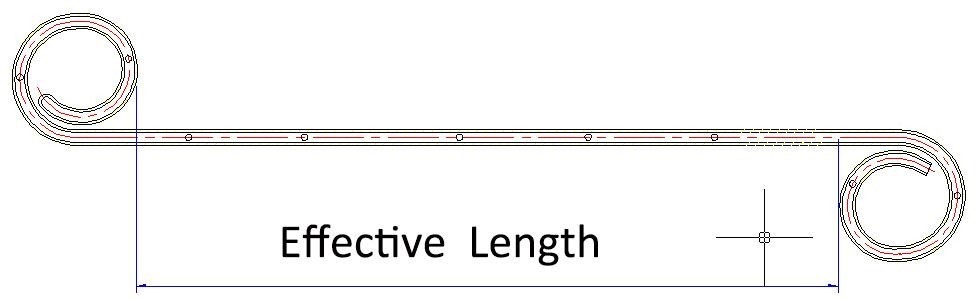

Stent Length Definition
- it only refers to the effective length as photo below,

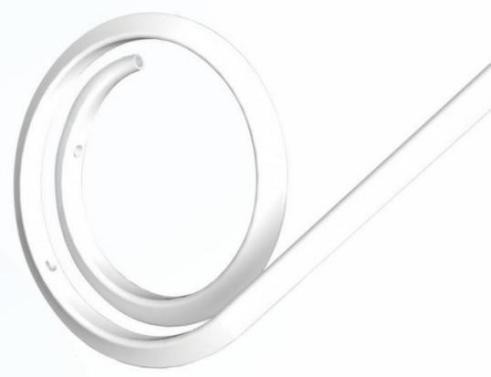

Type A Triangular Prism Stent
Triangle Prism structure design and concave surface.
- Bigger space reserved between the stent and the ureter that promotes drainage.
- Less contact between the stent and the ureter that will reduce the adhesion and facilitate ease of removal.

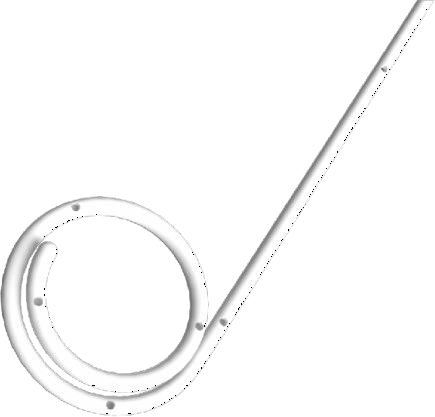

Type B Cylindrical Stent
- Larger inner lumen and thinner stent wall design to promote the drainage.
- Cylindrical body matching to the ureter reduces the foreign body sensation.
Ordering Information
| Model No. | Stent Type | Outer Diameter (Fr) | Effective Length (cm) | Package |
|---|---|---|---|---|
| 203A4DG | Type A | 4 | 25/27/29/31 | No Guidewire |
| 203A5DG | Type A | 4.8 | 25/27/29/31 | No Guidewire |
| 203A6DG | Type A | 6 | 25/27/29/31 | No Guidewire |
| 203A7DG | Type A | 7 | 25/27/29/31 | No Guidewire |
| 203A4TC | Type A | 4 | 25/27/29/31 | Coated Guidewire |
| 203A4CH | Type A | 4 | 25/27/29/31 | Hydrophilic Guidewire |
| 203A4BM | Type A | 4 | 25/27/29/31 | Zebra Guidewire |
| 203A5TC | Type A | 4.8 | 25/27/29/31 | Coated Guidewire |
| 203A5CH | Type A | 4.8 | 25/27/29/31 | Hydrophilic Guidewire |
| 203A5BM | Type A | 4.8 | 25/27/29/31 | Zebra Guidewire |
| 203A6TC | Type A | 6 | 25/27/29/31 | Coated Guidewire |
| 203A6CH | Type A | 6 | 25/27/29/31 | Hydrophilic Guidewire |
| 203A6BM | Type A | 6 | 25/27/29/31 | Zebra Guidewire |
| 203A7TC | Type A | 7 | 25/27/29/31 | Coated Guidewire |
| 203A7CH | Type A | 7 | 25/27/29/31 | Hydrophilic Guidewire |
| 203A7BM | Type A | 7 | 25/27/29/31 | Zebra Guidewire |
| 203B6DG | Type B | 6 | 25/27/29/31 | Hydrophilic Guidewire |
| 203B7DG | Type B | 7 | 25/27/29/31 | Zebra Guidewire |
