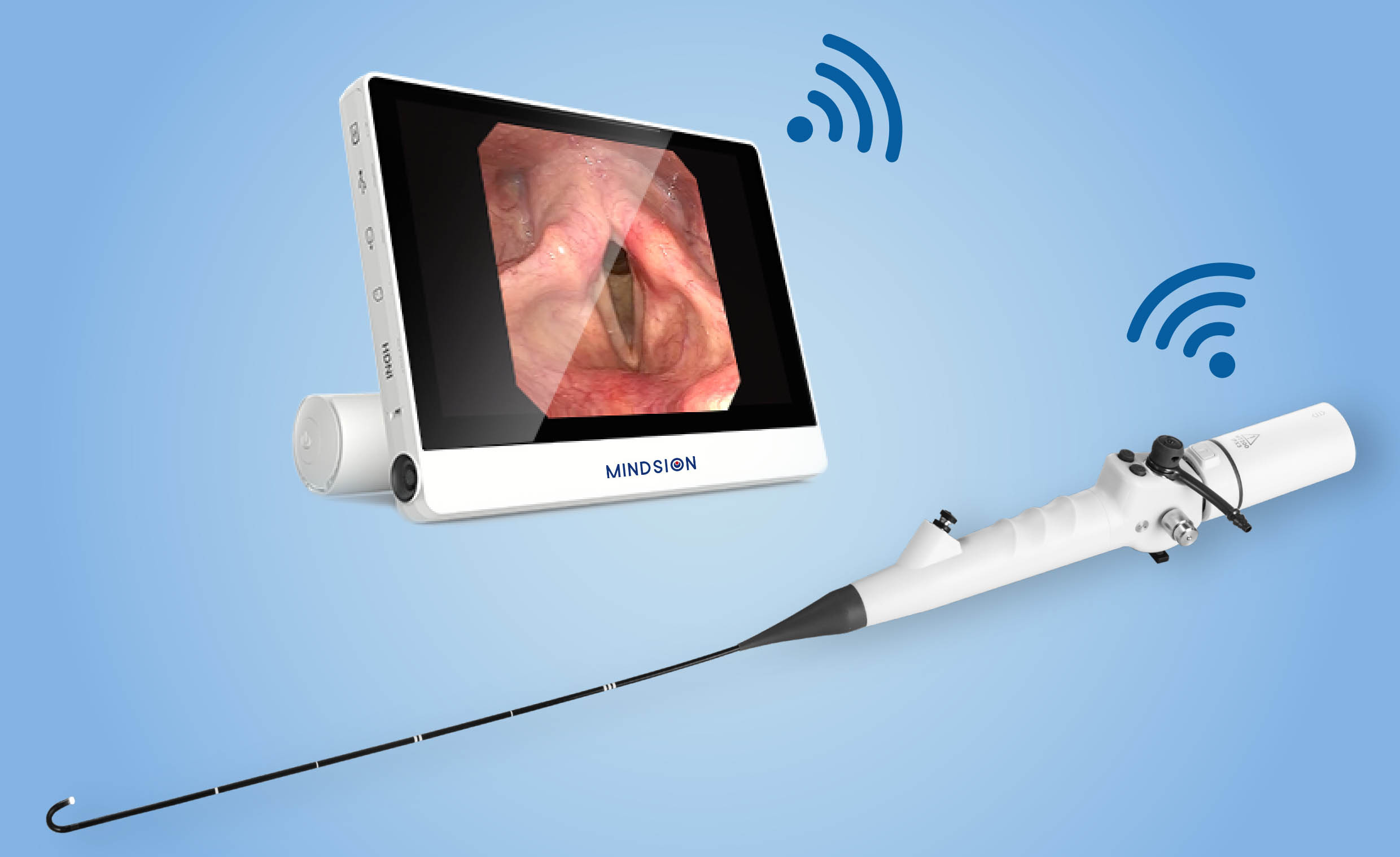

Wireless video signal transmission
Big Working Channel
Integrated unify display system. Portable for easy use
| Standard | HD | |||
|---|---|---|---|---|
| Specifications | EF28 | EF30 | EF38 | EF45 |
| Field of View | 120° | 120° | 120° | 120° |
| Depth of View Field | 3mm-200mm | 3mm-200mm | 3mm-200mm | 3mm-200mm |
| Range of Tip Bending | (U) 180° (D) 130° |
(U) 180° (D) 130° |
(U) 180° (D) 130° |
(U) 180° (D) 130° |
| Outer Diameter of Insertion Tube | ϕ2.8mm | ϕ3.0mm | ϕ3.8mm | ϕ4.5mm |
| Inner Diameter of Instrument Channel | / | ϕ1.2mm | / | ϕ2.2mm |
| Working Length | 365mm | 365mm | 365mm | 365mm |

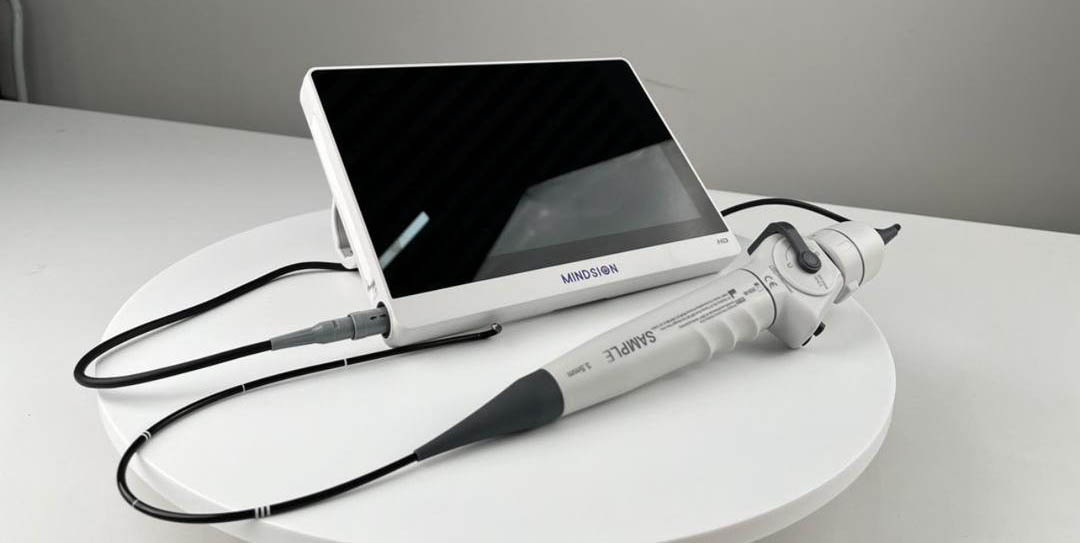

Flexible Video Endoscope Display (VS50)
Display can adjust view angle for up/down and left/right rotation.
| Specifications | VS100 |
|---|---|
| Imaging resolution | 1920x1080 |
| Video output | Mini HDMI |
| Data Storage | USB Disk, SD card (Built-in 8GB) |
| Inner / Video format | JPG / BMP / MP4 |
| Power | DC3.7V Li-ion Battery |
Flexible Video Endoscope Display (VS100)
1280*800 Resolution HD
| Specifications | VS100 |
|---|---|
| Imaging resolution | 1280x800 |
| Video output | HDMI |
| Data Storage | USB Disk, SD card (Built-in 8GB) |
| Inner / Video format | JPG / BMP / MP4 |
| Power | DC3.7V Li-ion Battery; 100~240V; 50/60Hz |
