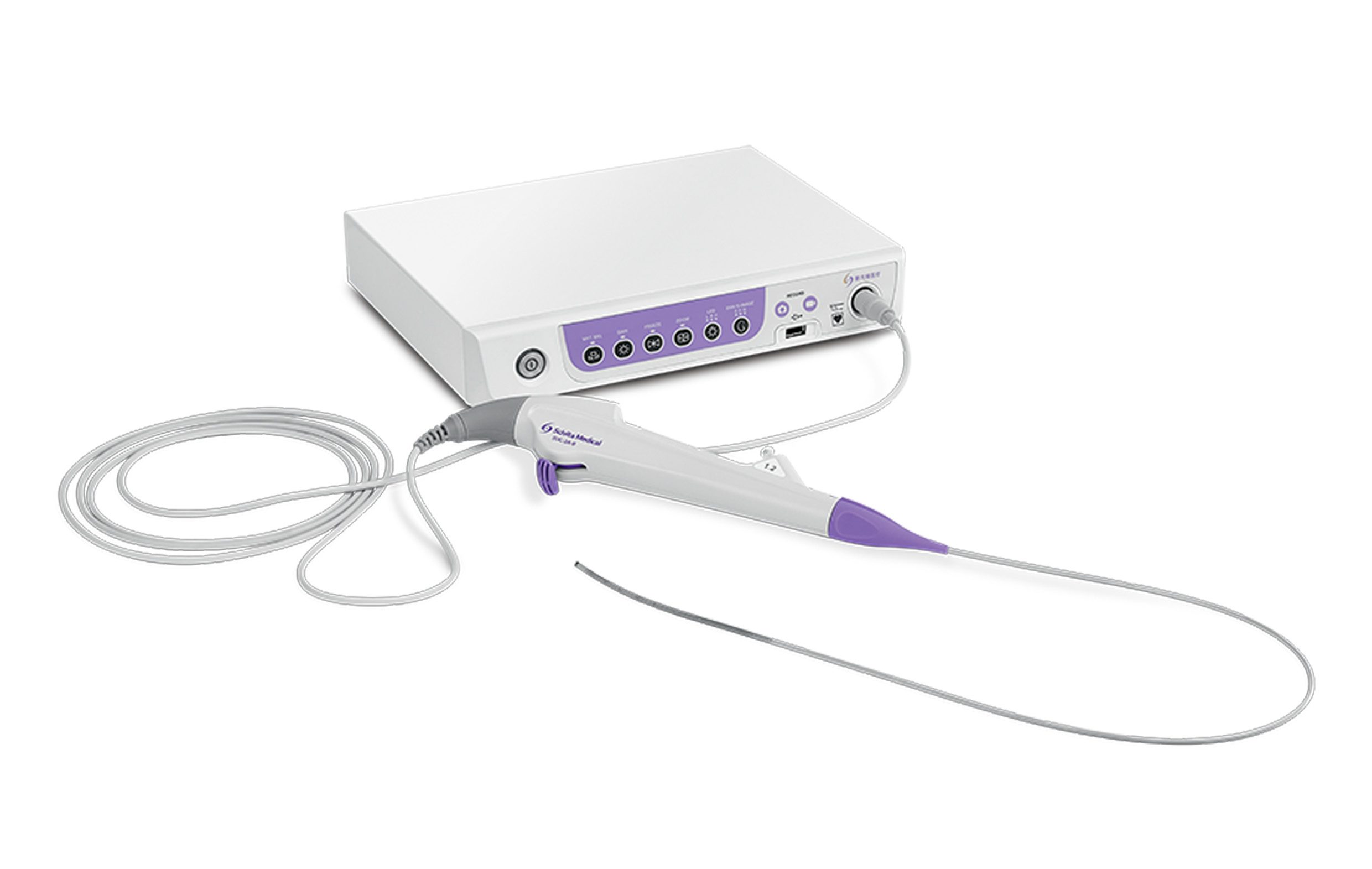

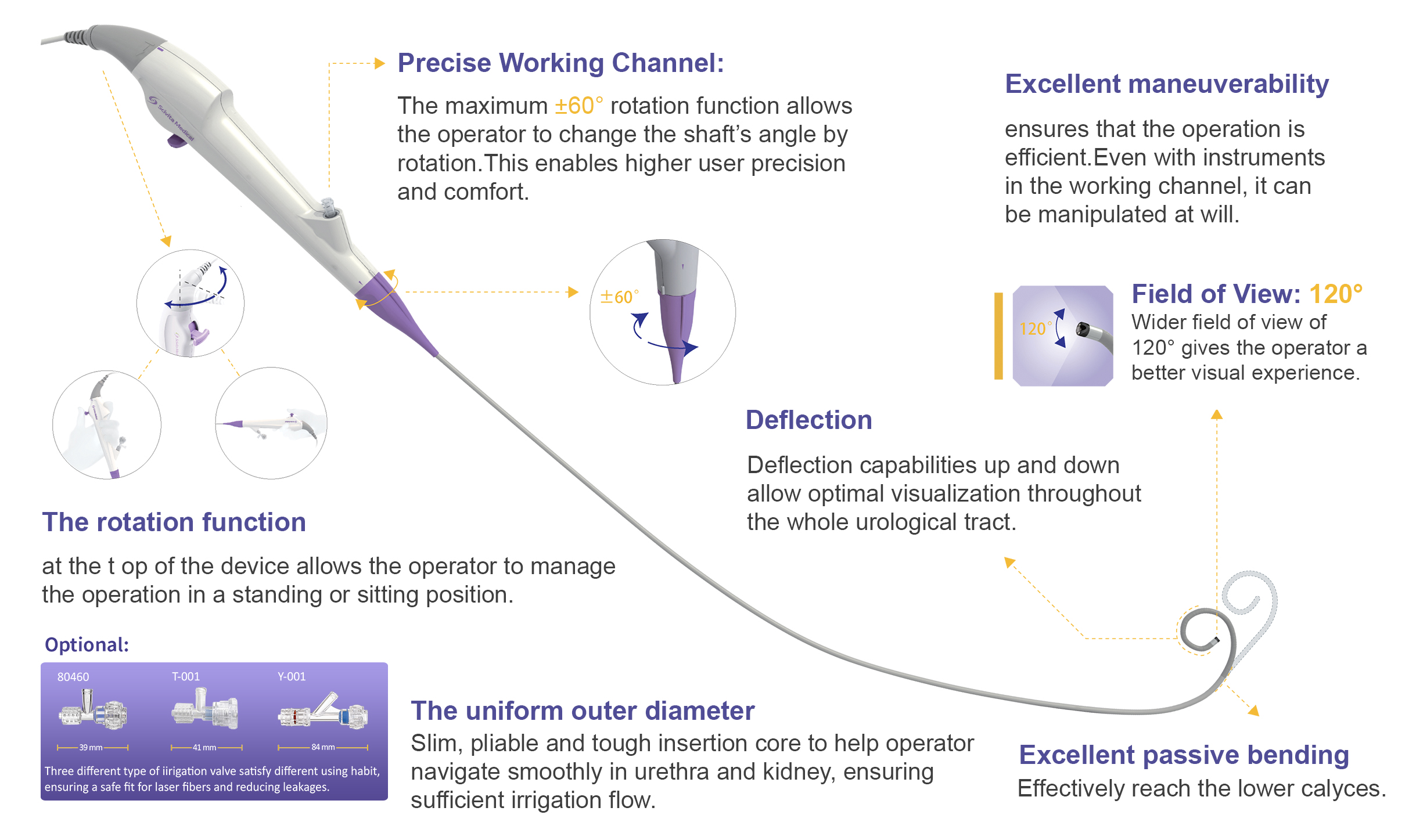

Endoscope Ureteroscope Cystoscope
Model SUV-2A-B SUV-2C-B SUV-1D-B
Outer Diameter of Insertion Section 8.4Fr ( ø2.8mm ) 7.5Fr ( ø2.5mm ) 16.2Fr ( ø5.4mm )
Outer Diameter of Distal End 8.1Fr ( ø2.7mm ) 7.2Fr ( ø2.4mm ) 15.6Fr ( ø5.2mm )
Weight 200g 200g 200g
Working Length 680mm 680mm 380mm
Total Length 990mm 990mm 700mm
Working Channel (ID) 3.6Fr( ø1.2mm ) 3.6Fr( ø1.2mm ) 6.6Fr( ø2.2mm )
Field of View 120° 120° 120°
Depth of Field 0.5˷̰120mm 0.5˷̰120mm 0.5˷̰120mm
Angulation Range 285° Up / Down 285° Up / Down 220° Up / Down

Be ready at any time

  • Plug and play. Off the shelf ready. Consistency every time
  • You decide which hand drives.
  • Avoid cross-infection.
  • Save on re-sterilsiation and maintenance costs.
  • Eradicate unnecessary repair bills.
  • Save time post procedure, no need for scope integrity testing.
Name Model Details

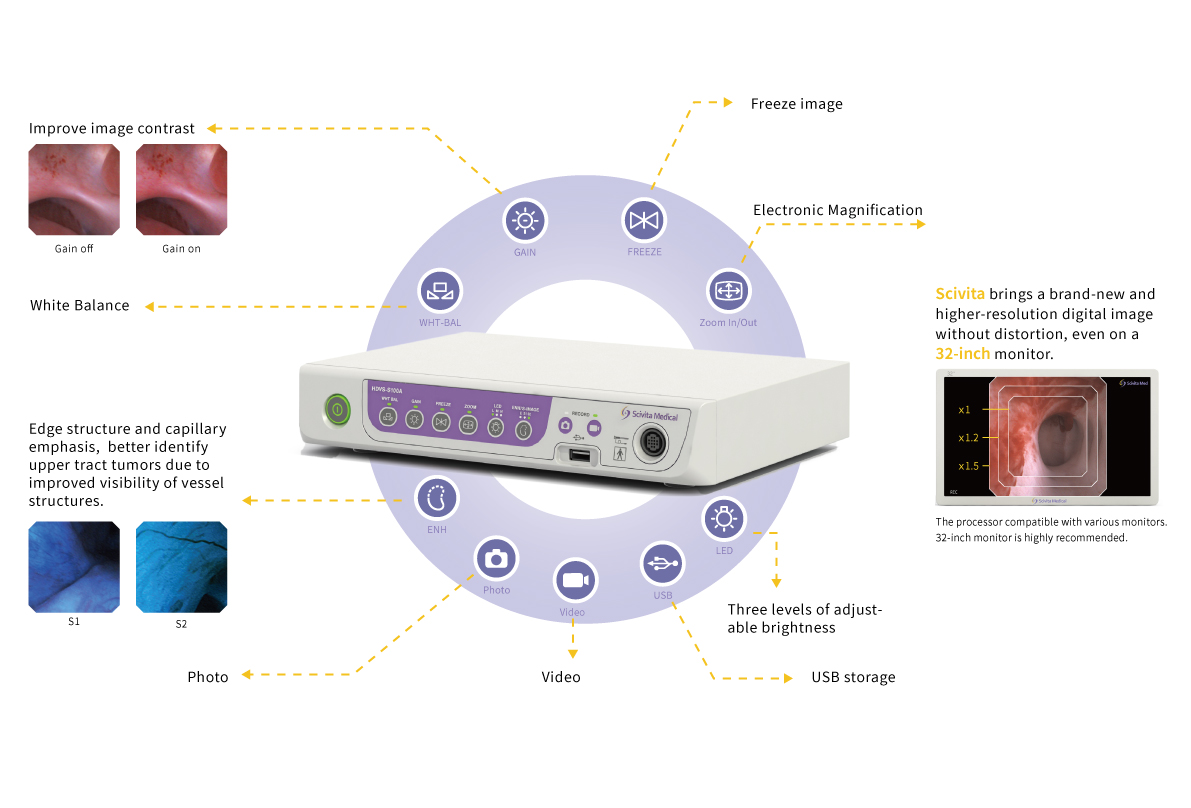

SCIVITA Endoscopic Image Processor SUV-S100A With ENH Function
SUV-S100D Without ENH Function
SPECIFICATION
  • Model : HDVS-S100A
  • Size : 300mm*225mm*57mm
  • Weight : 2.5 Kg
  • Power Supply Requirement : 100- 240V
  • Output : DVI*1, SDI*2
  • Interface: Foot Switch and USB
ACCESSORIES (OPTIONAL)
Irrigation Valve 80460 39mm
T-001 41mm
Y-001 84mm

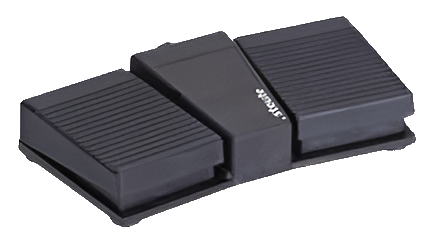

Foot Pedal KF2 1S-MED GP25
